  The  100g qsfp28 er -CWDM4-2km module is a highly integrated 4x28G transceiver focused on reach, bandwidth, density and cost for high port-count 100G systems, and client-side 100G interfaces. It is compliant with the 100G 4WDM-10 MSA, which is based on the CWDM4 MSA version 1.1. It is interoperable with  100g cwdm4   transceivers over a 2 km reach. Features of qsfp28 cwdm4 Reach: 2 km via SMF Link budget assumes the use of KR4 FEC by the host Uncooled CWDM DFB lasers, directly modulated Electrical interface: retimed CAUI-4 per 100G Ethernet IEEE 802.3bm Annex 83E User controllable Transmit Input Equalization and Receiver Output Amplitude MSA-compliant performance monitoring via I2C interface Fiber connector: SMF LC duplex connector Hot-pluggable 0–70°C operating temp Power dissipation < 3.5W RoHS6 compliant (lead-free) Applications of QSFP28 100G CWDM4 2k 100G CWDM4 Ethernet InfiniBand 4x EDR There are many  fiber optic transceiver manufacturers , but we are one of the best choice

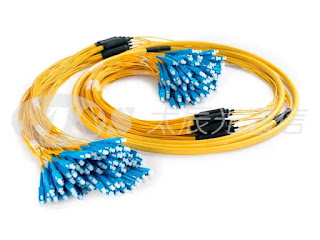

  Pre terminated fiber cable assemblies      consist of optical fiber cable terminated with various types of connectors, such as the ST, FC, SC, LC, MU, MTRJ, E2000 Connector types. Our polishing craft and expertise ensure excellent optical performance.   As a professional pre terminated cable    manufacturer, T&S produces multifiber cable assemblies that are composed of top-quality ceramic ferrules and fiber connector housings. All of our multifiber cable   are ensured with a stable performance at a high-quality level. There are many fiber optic component manufacturers , but we are one of the best choices for you.

  As an experienced plc splitter factory, T&S offers PLC splitter wafers as well. Based on Planar Lightwave Circuit technologies, PLC splitter wafers are produced on the quartz substrate through a series of processes including CVD deposition, photo-masking, etching, etc. PLC splitter wafers can be designed for 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 and 2xN. Splitter chips with high yield, quality and reliability, are made of PLC wafer   through dicing and polishing.   PLC Chip Features Low PDL for PLC chip   Low IL for PLC chip   T&S PLC chip has a wide operating wavelength: 1260-1650nm   Compact size   RoHS compliance   PLC Chip Applications Among all PLC splitter manufacturers, T&S PLC chip can be applied in Optical communication networks, Telecom equipment, Three-Network-Integration systems, including Signal/power distribution, Fiber-To-The-Home (FTTH), Passive Optical Network (PON).   If you are looking for a reliable optical fiber manufacturer , don't hesitate to contact

  Instead of taking a thin film filter to mux or demux wavelengths, PLC type achieves the same goal by using chip PLC, which uniformly divides and guides light with different wavelengths. At T&S, we currently provide multi-channel AWG DWDM Modules and 4ch CWDM/LWDM Devices.   PLC-type WDM products   are a type of product developed based on planar optical waveguide technology, which uses the principle of arrayed waveguide grating to realize the function of wave division and multiplexing; currently this type of product is mainly divided into two categories, the first category is high-channel 100G DWDM product AWG; the second type is low-channel CWDM or Lan-WDM, the first type is mainly used in high-density long-distance metro DWDM transmission network, and cooperates with EDFA to realize long-distance high-capacity backbone fiber transmission; the second type Mainly used in TOSA and ROSA of various QSFP optical modules to realize 4*10G/4*25G parallel high-speed transmission.   If you

  Planar Lightwave circuit (PLC) splitter is a sort of optical power management device produced using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. PLC splitter is an ideal solution for passive optical network. T&S are professional plc splitter manufacturer     and core suppliers of top giants cross fiber optic communication market for more than 20 years. We provide 1xN and 2xN series of splitters with up to 128 outputs, and we rely on PLC chip produced by ourselves.   Features of PLC Splitter Broadband Operation Wavelength   Low Insertion loss   Low PDL   Compact Design   Good channel-to-channel uniformity   High Reliability and Stability   Pass Telcordia GR-1209-Core Reliability Test   Pass Telcordia GR-1221-Core Reliability Test   RoHS Compliance   App

  The MT ferrule   is a multi-fiber, plastic ferrule with a square end-face of 6.4x2.5 mm and fiber pitch 0.25mm, widely applied in MPO connectors and AOC cables. 12 and 24-fiber mt ferrules are the most commonly used types. As one of the professional China ferrule manufacturers   and ferrule suppliers , T&S provides high-quality MT ferrules wholesale, custom service is supported.. MT Ferrules Features MT ferrules manufactured by high precision mold technology meet international standards such as IEC 61754-3-31, GR-135 etc. MT Ferrule Dimensions MT is short for mechanical transfer. MT ferrule is a multi-core polyphenylene sulfide ferrule, which is also called PPS ferrule, with a square end-face of 6.4×2.5 mm and 0.25mm pitch between adjacent fiber holes. The alignment mechanism includes two stainless steel guide pins that fit into precisely molded alignment holes. As one of the professional ferrule suppliers, T&S produces 12-core, 16-core and 24-core MT MPO ferrules at differen
