Fiber Patchcord & Pigtail

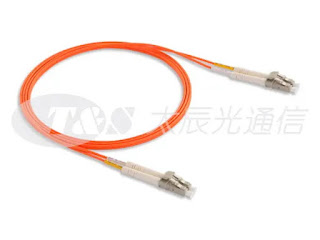

Fiber patch cord normally consists of optical fiber cable and connectors at both ends of the cable, the pigtail is connector assembled at one end， low mating insertion loss and negligible attenuation for access. besides conventional connectors like LC, LC uniboot, SC, MU, ST, FC, E2000, special and new like CS, SN connector patch cord is also mature.IEC, EIA/TIA compliant. As an experienced patch cord manufacturer, T&S provide high-quality pigtail patch cord for years.



Features of Fiber Patchcord & Pigtail

Precision zirconia ferrules



Standard or custom configurations



Multimode and single-mode options



Low-back reflection and insertion loss



Applications of Fiber Patchcord & Pigtail

Data centers



Ethernet applications



FTTH applications



Backbone, horizontal and riser applications



Video, data and voice services



Test equipment applications



Standard Compliance of Fiber Patchcord & Pigtail

IEC 61754 series compliant



Qualified to Telcordia GR-326-Core



Reach, RoHS and SvHC compliant



Specifications of Fiber Patchcord & Pigtail

General SpecificationTechnical Specification



Typical Cable Construction of Fiber Patchcord & Pigtail



If you are looking for a reliable optic connector supplier, please contact us.
